350w Brushless Upgrade Kit – To fit Revvi 16″ + 16″ Plus bikes

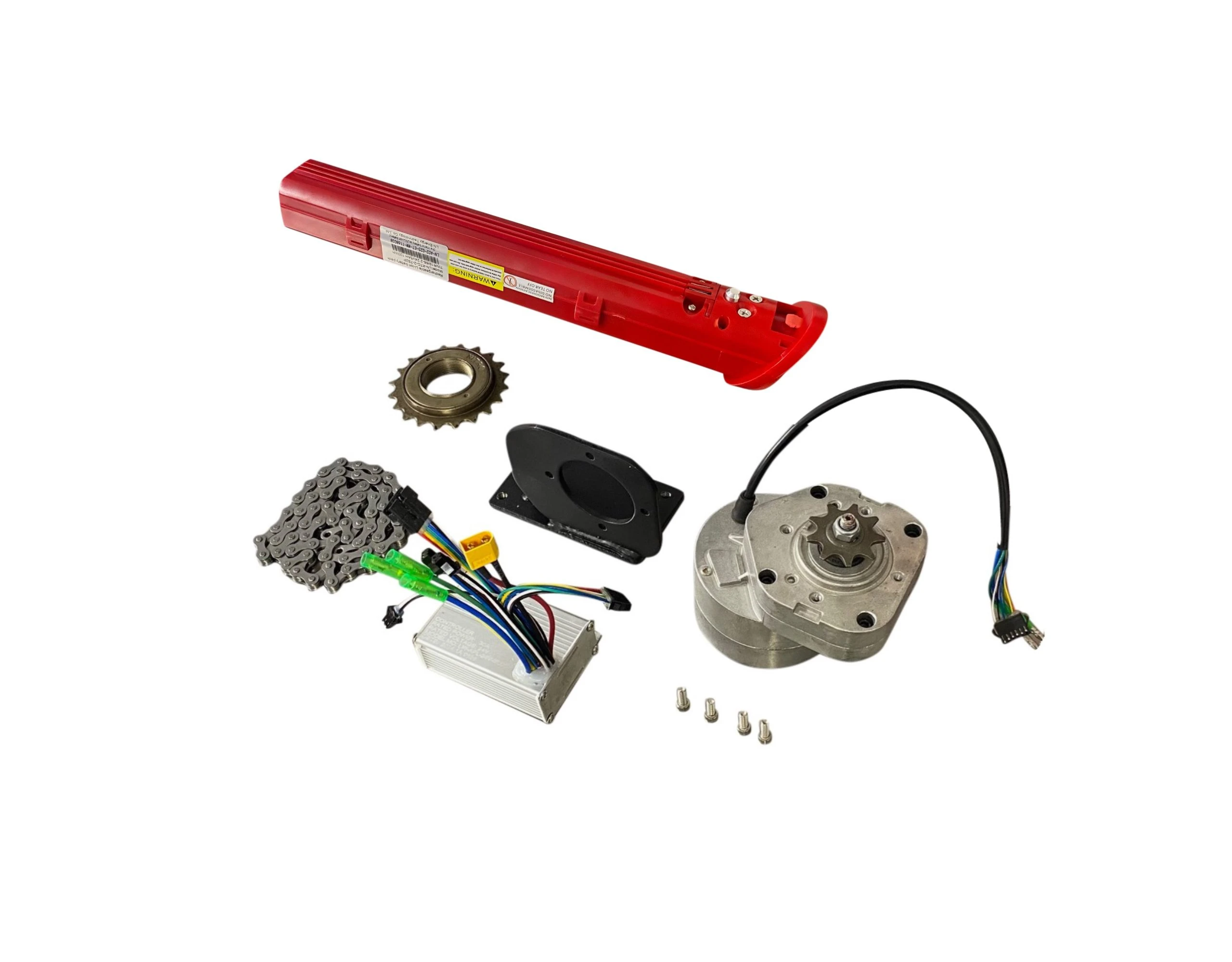

This kit includes:

• 350w brushless motor,
• High output 24v 5.0ah battery,
• Mounting bracket
• Control unit rated to the motor
• Upgraded chain
• Rear sprocket/freewheel.

The parts are a direct fit to the Revvi 16″ and 16″ plus bikes – select bike size.

The kit increases the acceleration, torque and top speed of the bike.

Supplied with 2 x sprocket options for you to choose from:

• 10T Front – 16T Rear (More top speed) – Approx top speed 19 mph
• 9T Front – 20T Rear (More acceleration) – Approx top speed 15 mph

This kit is for 3 speed bikes, If your bike has a 2 speed switch you will need to order and fit a 3 speed switch.

Important Battery Warning: The RED high output battery supplied should only be used with the 350w kit and not with any other Revvi bikes/motors. Normal Black batteries should not be used with this 350w kit.

Please note / Warnings: Special tools will be required to remove the freewheel from your wheel to change the sprocket! You can remove it using a vice and punch or a freewheel removal tool. This kit should be fitted by a qualified mechanic/technician, Video instructions attached. This will make the bike significantly faster with a lot more acceleration. Please make sure the riders ability matches the performance upgrade before use. We do not recommend using this kit with a drum brake, Disc brakes are recommended.
